Circle Detection and Drawing with OpenCV and Hough Transform

OpenCV, NumPy, Gaussian blur, Hough transform

Technology Stack : OpenCV, NumPy, 高斯模糊, 霍夫变换

Code Type : The type of code

Code Difficulty : Advanced

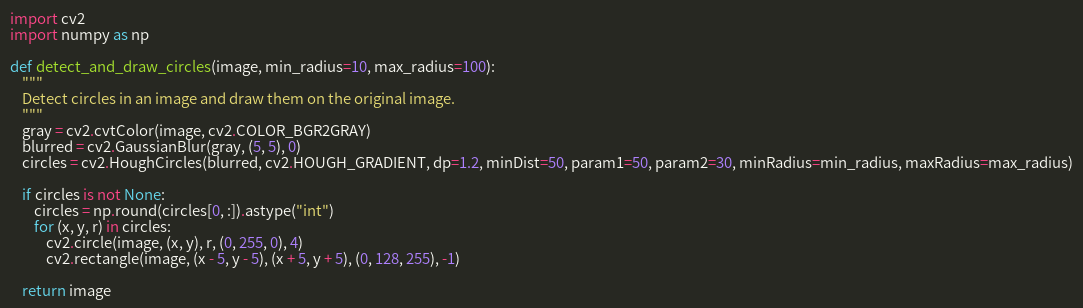

import cv2
import numpy as np

def detect_and_draw_circles(image, min_radius=10, max_radius=100):
    """
    Detect circles in an image and draw them on the original image.
    """
    gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
    blurred = cv2.GaussianBlur(gray, (5, 5), 0)
    circles = cv2.HoughCircles(blurred, cv2.HOUGH_GRADIENT, dp=1.2, minDist=50, param1=50, param2=30, minRadius=min_radius, maxRadius=max_radius)

    if circles is not None:
        circles = np.round(circles[0, :]).astype("int")
        for (x, y, r) in circles:
            cv2.circle(image, (x, y), r, (0, 255, 0), 4)
            cv2.rectangle(image, (x - 5, y - 5), (x + 5, y + 5), (0, 128, 255), -1)

    return image
